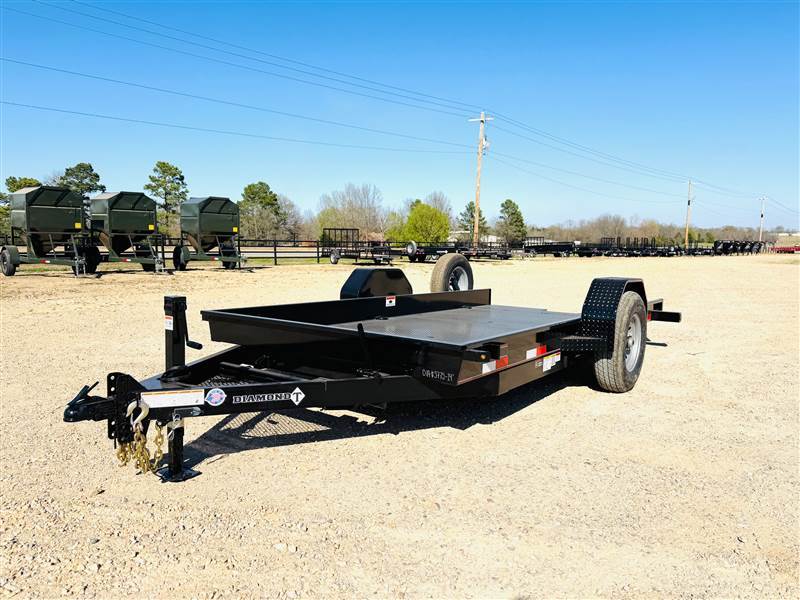

2025 Diamond T Scissor Lift Tilt Trailer 79" x 14' Tilt Trailer
Diamond T Sales
The Diamond T Scissor Lift Tilt Utility Trailer is leading the industry with its design and functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our SLT an industry leader which include the following standard features:
• Hydraulic Cushion Cylinder• Spare Tire Rack• Forward Self Adjusting Brakes• Tread Plate Fenders• Tubing Light Brackets w/ Sealed LED’s• Wiring Sealed in Frame• 5/8” x 3” D-Rings• 100% Prime and Paint• 2 Line Pinstriping
Specifications
Coupler: 2 5/16? 15k Adjustable*
Jacks: 7000# Dropleg
Safety Chains: 3/8?x39? w/Sliphook
Tongue: 5? Channel
Frame: Fabricated Frame
Cross Members: 3? Channel
Axles: 7000# Brake
Suspension: Torsion
Tires: ST 235/16 Load Range E Radial
Wheels: 16? 8 on 6 1/2? Silver Mod
Fenders: 9”x36” w/ Double Broke Cut Back
Flooring: Diamond Plate Steel Floor
Lights: All Sealed LED Stop, Tail, Turn and Clearance
Finish: Phosphate etched, primed, 2 coats acrylic enamel
Trailer information
