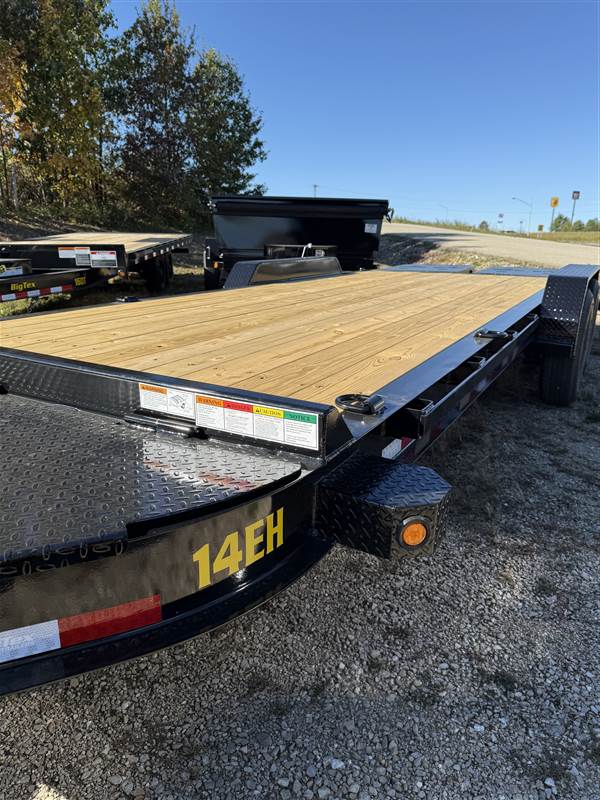

2026 Big Tex 14eh 20 foot
BIG TEX 14 EH
Axles
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self-Adjusting Electric Brakes on All Hubs
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Coupler
Adjustable 2-5/16” Demco EZ Latch
Adjustable Pintle in Channel in Lieu of Coupler
Adjustable 2-5/16" Demco EZ Latch Gooseneck Coupler
Safety Chains
3/8" Grade 70 w/ Safety Latch Hook
(2 ea
)
Jack
12,000# Drop-Leg Jack
(Side Wind
)
Frame
8" I-Beam
Cross-Members
3" Channel on 16" Centers
Front Stop Rail
3/16" Fabricated Front Stop Rail
Floor
Treated Pine Floor
Fenders
9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back
(Removable
)
Ramps
5' Tall, 16" Stand Up Rams
(Spring Assisted
)
36" Wide Mega Ramps
(D3 Models Only
)
Super-Wide Ramps
(60" Tall x 30" Wide
) w/ Blackwood Pro-Filled Dovetail
Dovetail
40” Cleated Dovetail
Stake Pockets
Stake Pockets Along Both Sides
(Quantity Varies by Length
)
Trailer Plug
7-Way RV
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade
(ST235/80 R-16 LR-G
)
Bolt Pattern
8-Lug
Spare Mount
Spare Tire Compartment in Toolbox
Spare Tire
Not Included
Spare Tire & Wheel
(ST235/80 R-16 LR-E
)
Paint Color
Black
Rubrail
Rub Rail Along Both Sides
Tie-Downs
(6
) 5/8" D-Rings
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Storage
Lockable Toolbox Between Risers on Gooseneck Model
Mega-Sized Integrated Tongue Box with Lockable Lid
(Bumper Pull Only
)
Steps & Handles
Convenient Side-Step to Access Deck
FOR MORE INFO CALL SALES 1-800-897-9840
