2026 Big Tex Trailers 90SR-10 6x10 10K Dump Trailer w/Ramps
The Big Tex 90SR is a heavy-duty, tandem axle dump trailer with a 9,990 lb GVWR, featuring a 12-gauge steel floor/sides, 6x2" tubing frame, single-ram hydraulic lift, 20" side height, double rear gates, and optional ramps, suitable for hauling materials like dirt, gravel, or small tractors, with standard electric brakes, LED lights, and a 12V battery system. Key Specifications
(Varies Slightly by Length - 10' or 12'
) GVWR: 9,990 lbs Empty Weight: Around 2,930 lbs
(12ft
) or 2,750 lbs
(10ft
) Payload Capacity: Around 7,060 lbs Bed Dimensions: 72" wide
(6 ft
) by 10' or 12' long Side Height: 20" Floor: 12 Gauge Smooth Steel Frame: 6" x 2" Rectangular Tubing
(instead of channel
) Axles:
(2

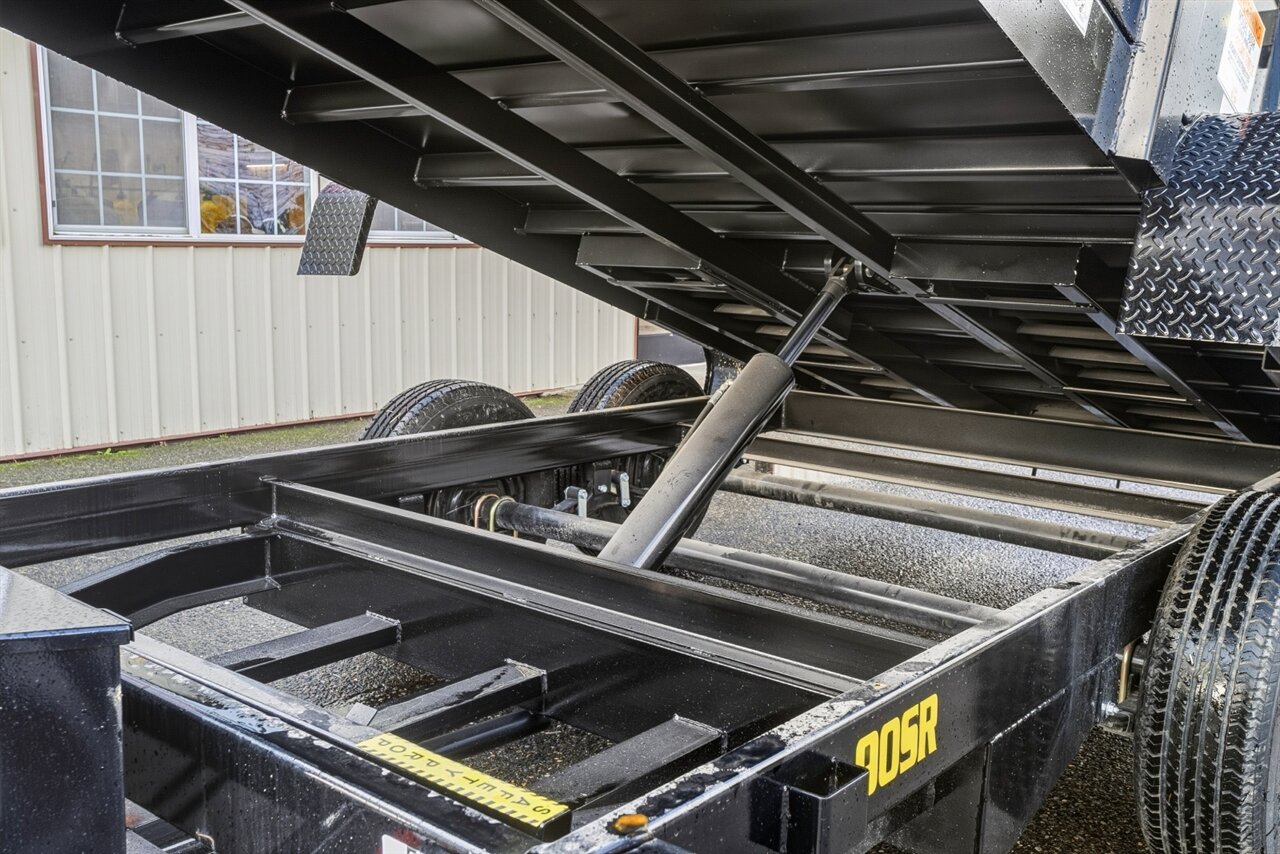

) 5,200# Premium, Cambered Axles with Electric Brakes Suspension: Multi-Leaf Slipper Spring with Equalizer Lift System: Single-Ram
(Power Up/Power Down

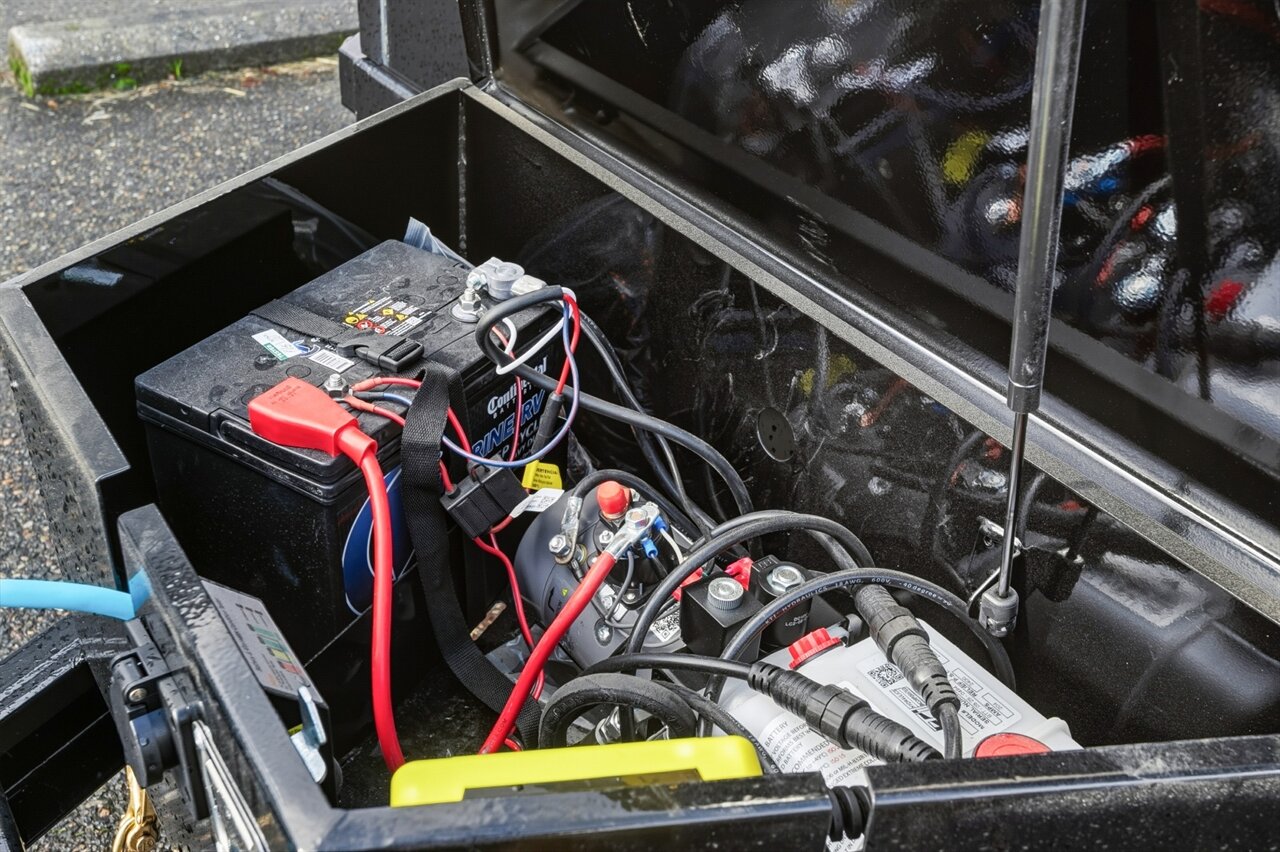

) Doors: Double Rear Doors Fenders: 9" x 72" Diamond Plate, Double Square Broke Lighting: Recessed, Grommet-Mounted LED Battery: 12V Deep Cycle with Onboard Charger Jack: 7,000# or 8,000# Top Wind Drop Leg Key Features Durable Construction: Heavier frame and floor than lighter-duty models. Convenient Loading: Double rear gates and optional ramps. Secure Storage: Lockable pump and battery box. Enhanced Control: Stake pockets and D-rings for tie-downs. Easy Maintenance: Self-adjusting electric brakes and quick-lube hubs. 90SR - Big Tex Trailers Features & Options ; 6x2 Rectangular Tubing ILO 6" channel · 3" Channel on 16" Centers · 12 Gauge Smooth Steel · 9” x 72” 14 Ga. D...
