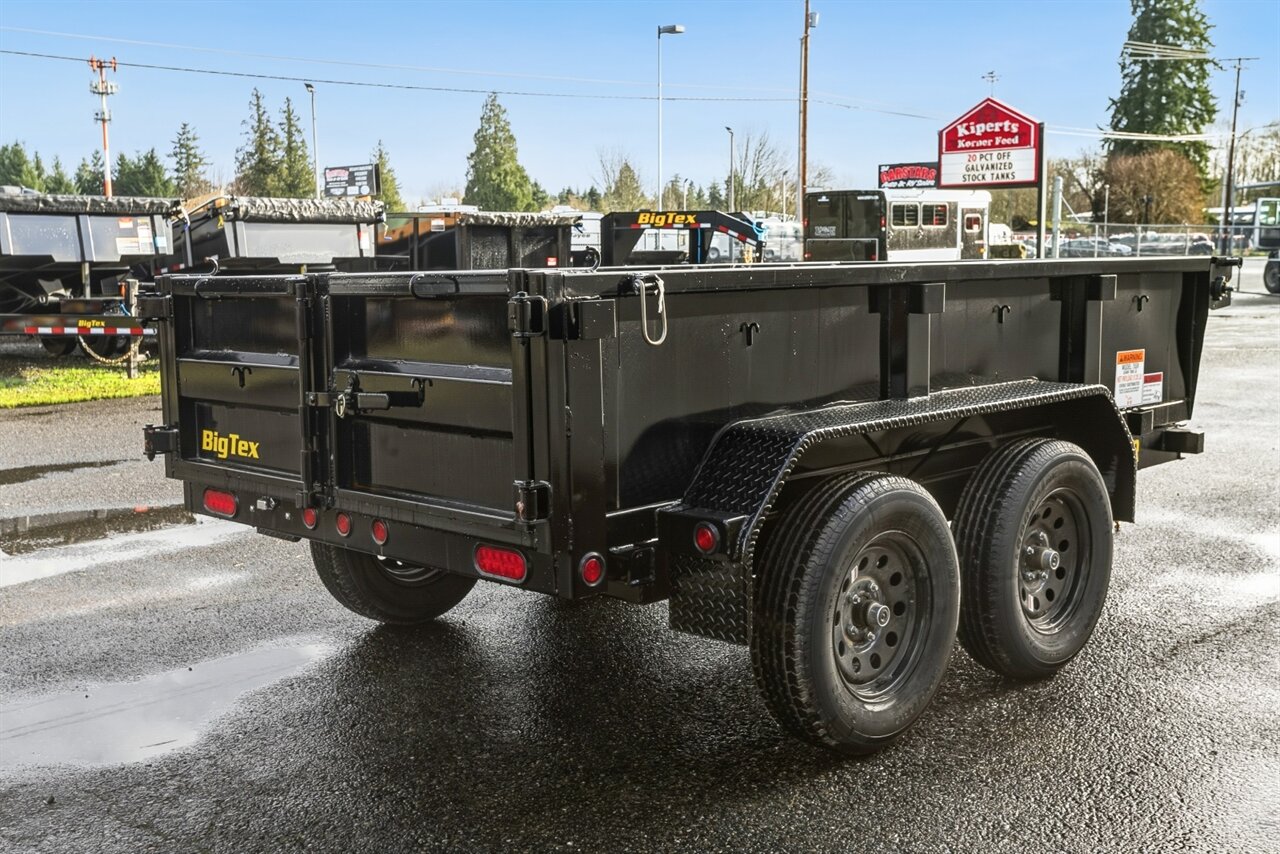

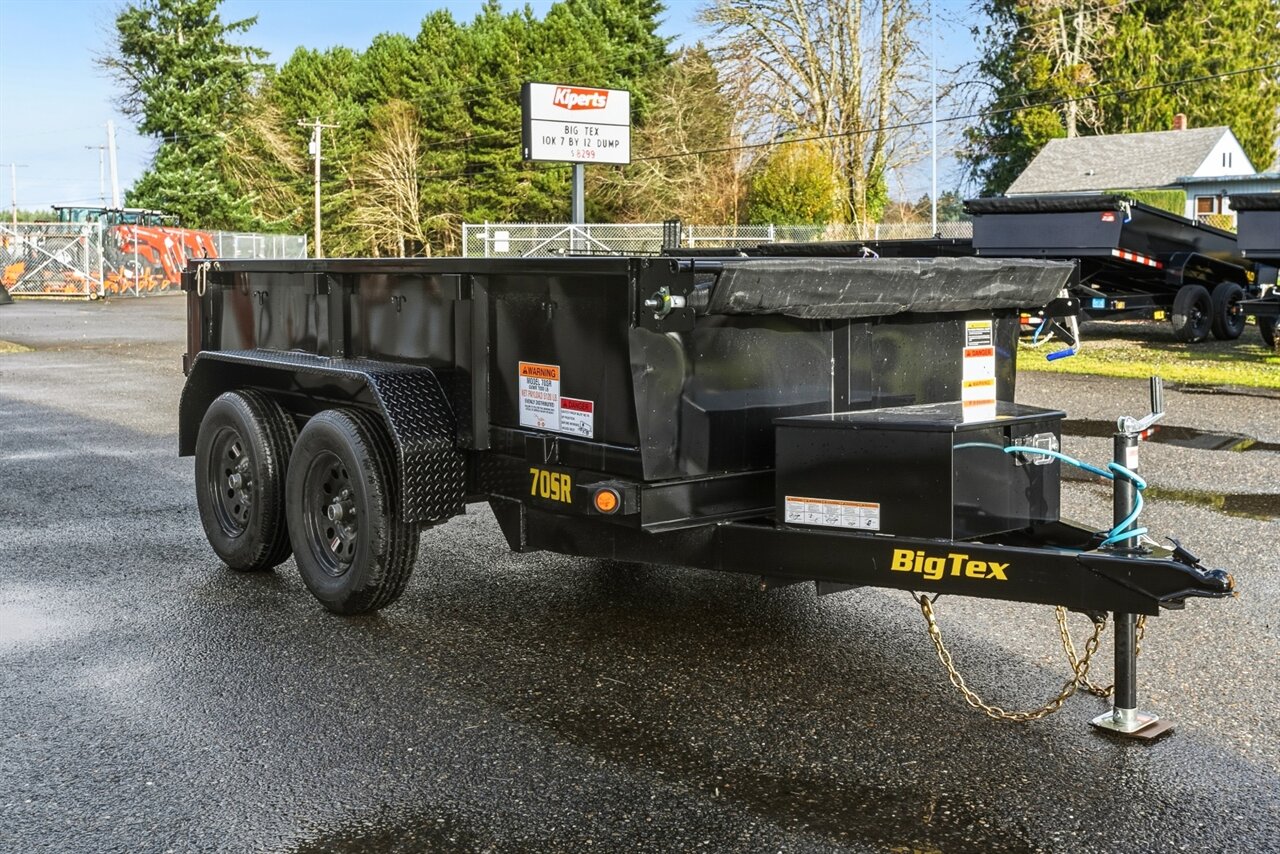

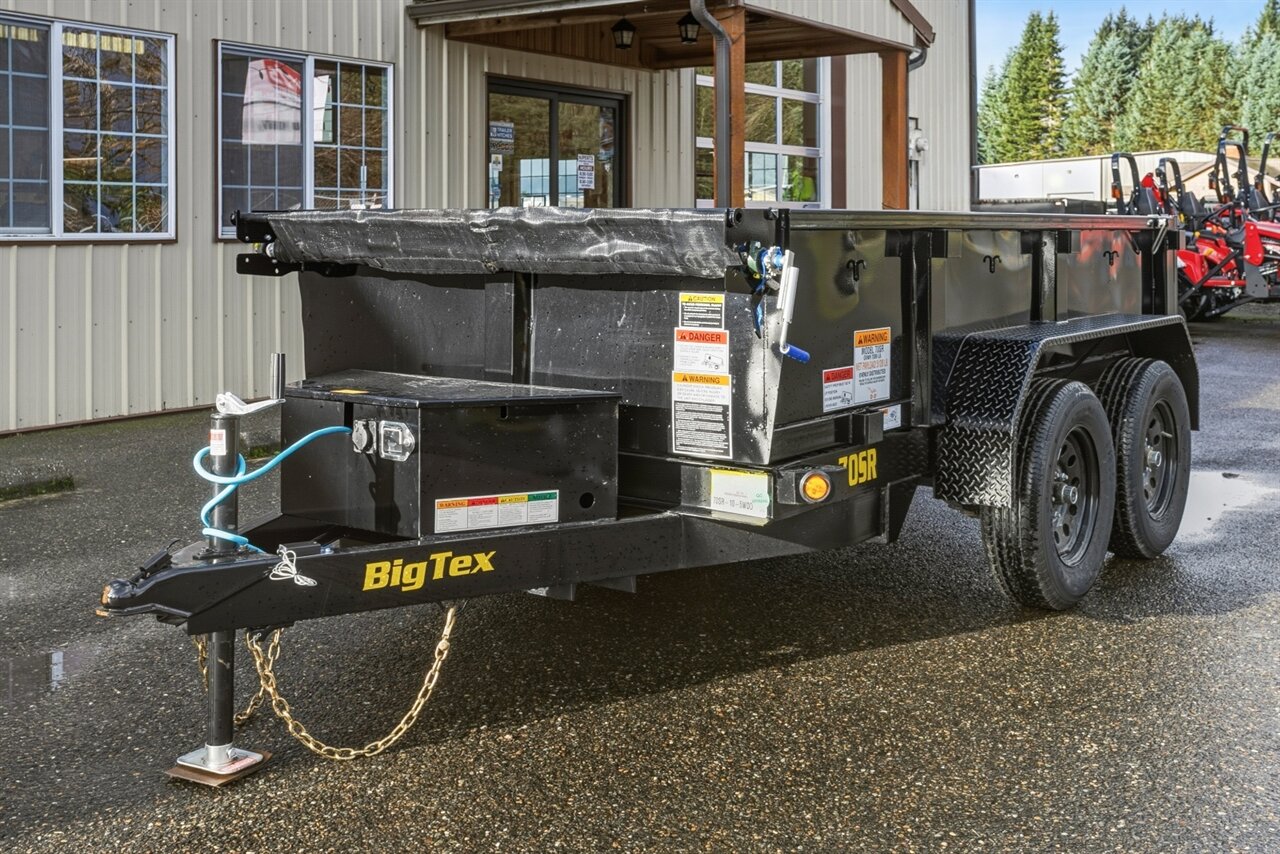

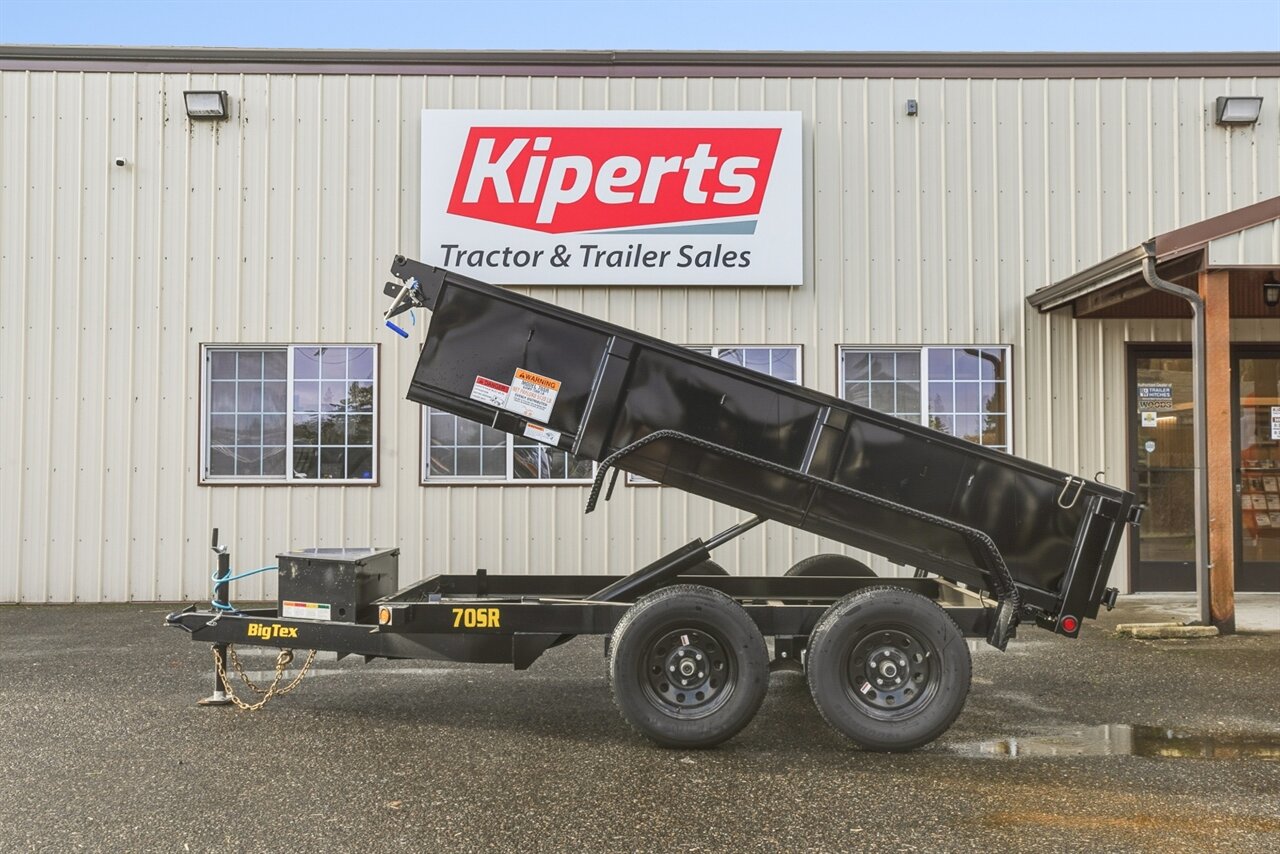

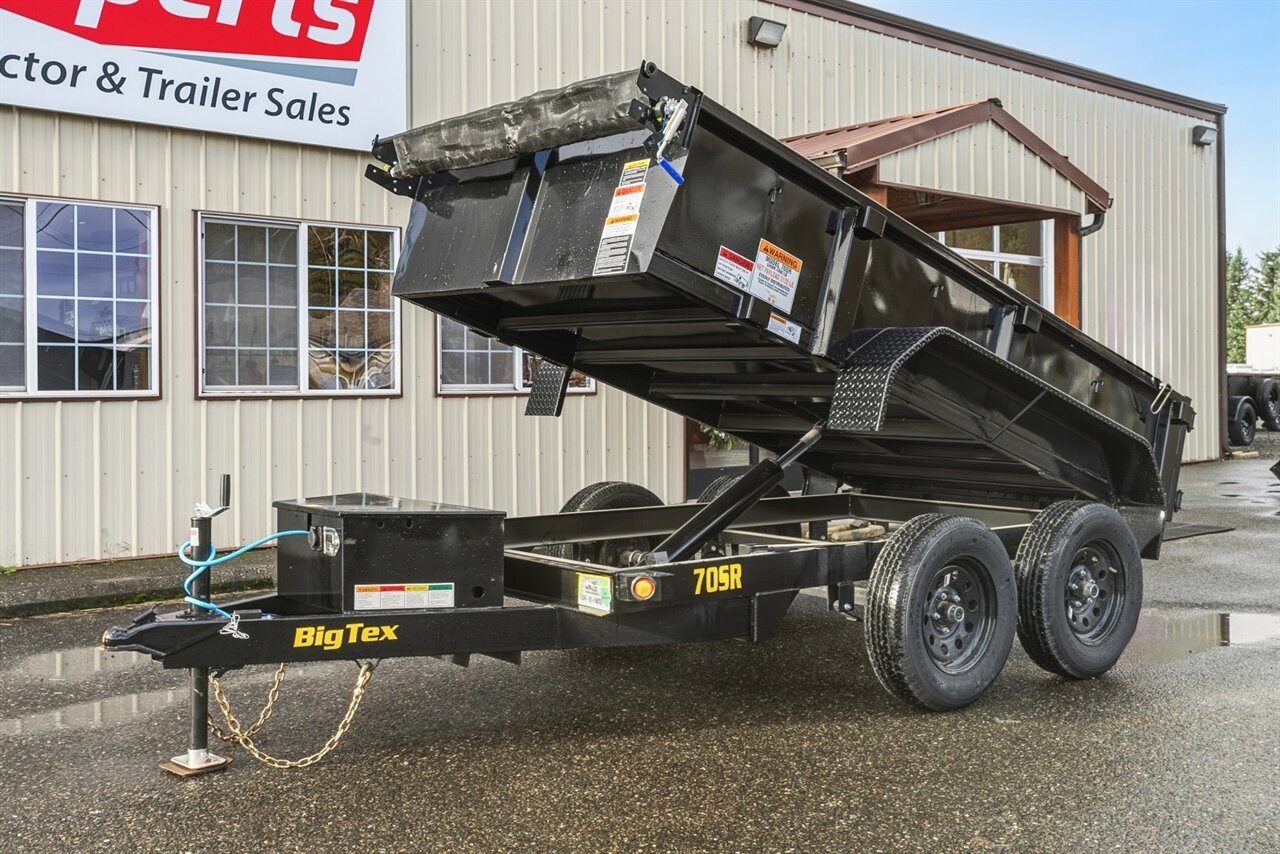

2026 Big Tex Trailers 70SR 70SR-10-5WDD 7K 5x10 Dump Trailer
The Big Tex 70SR is a light-duty, 7,000 lb GVWR single-ram dump trailer, typically 5x10 feet, designed for residential or farm use, featuring a 16-gauge steel bed, 5" channel frame, tandem 3,500 lb axles with electric brakes, a power-up/power-down hydraulic lift, a 12V deep-cycle battery with onboard charger, and double rear gates, offering around 5,270 lbs of payload capacity for materials like dirt and mulch. Key Specifications GVWR
(Gross Vehicle Weight Rating
): 7,000 lbs. Empty Weight: ~1,730 lbs. Payload Capacity: ~5,270 lbs . Bed Size: 5 ft x 10 ft
(60" x 10'

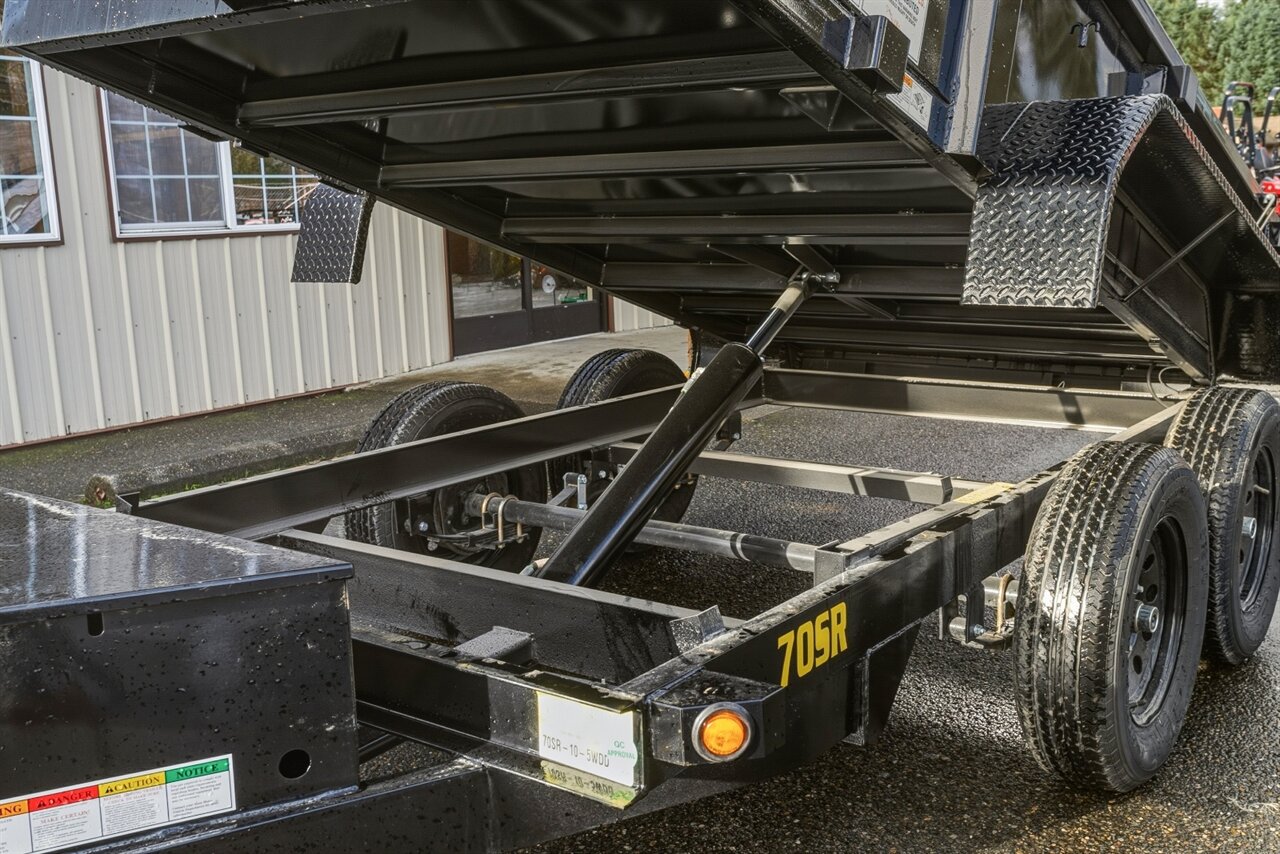

). Axles: Tandem 3,500 lb axles with electric brakes. Lift System: Single Ram, Power Up/Power Down. Battery: 12V Deep Cycle with 110V onboard charger. Sides: 20" high, 16-gauge steel. Floor: 16-gauge smooth steel. Frame: 5" channel. Fenders: 14 gauge diamond plate or roll-formed. Gate: Double rear doors
(spreader/combo
). Tires: ST205/75R15 Load Range C
(5-lug

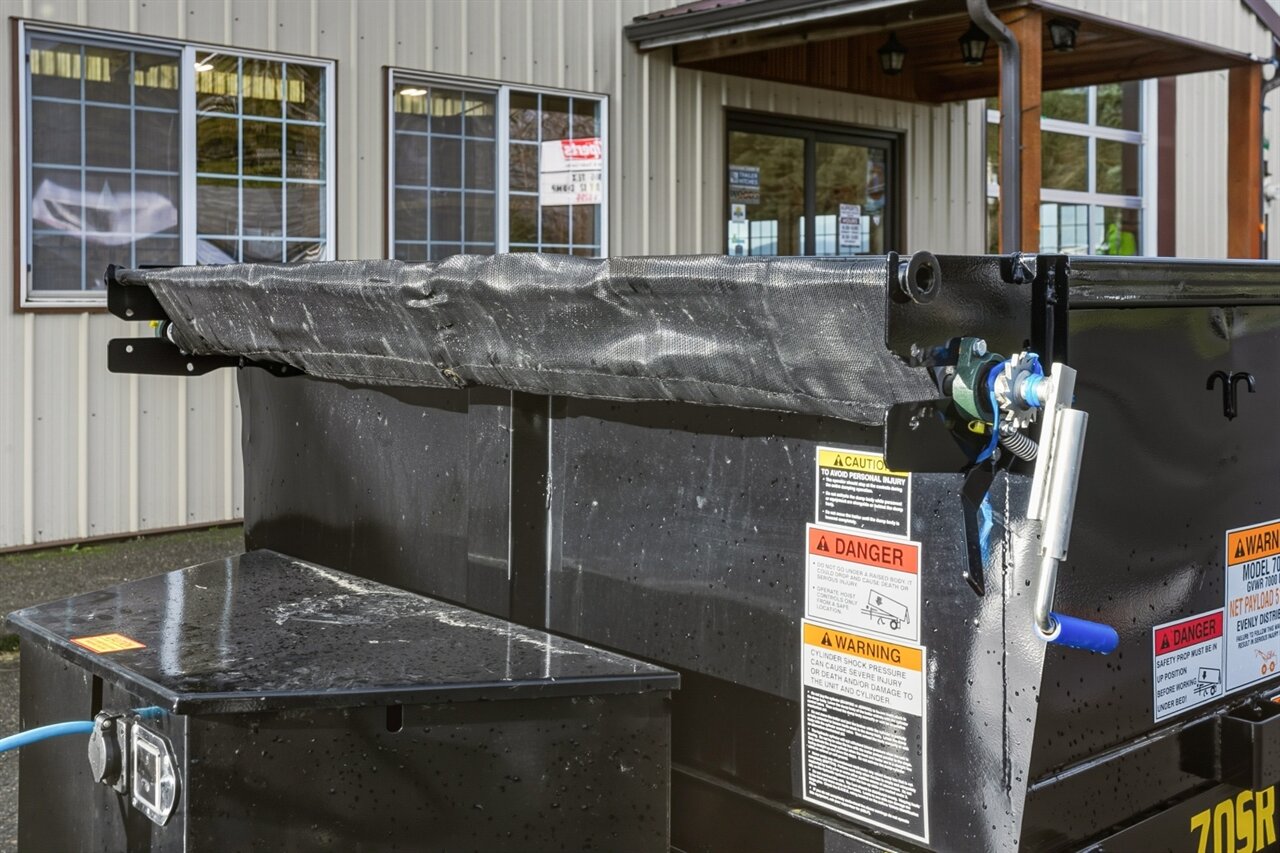

). Lighting: Recessed, grommet-mounted LED. Features & Design Ideal Use: Homeowners, farms, hauling mulch, dirt, gravel. Components: Lockable pump/battery box, 7-way RV plug, 2-5/16" coupler, 2,000 lb top-wind jack. Not Included: Ramps
