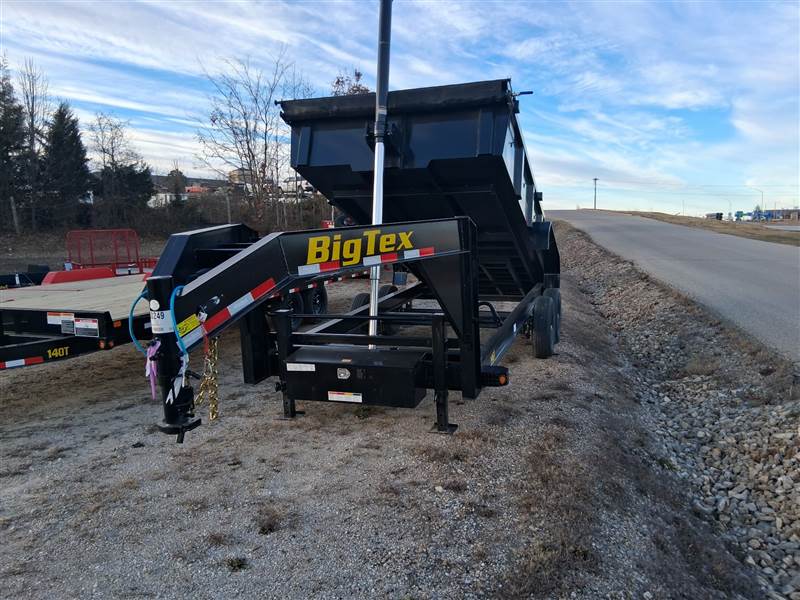

2026 Big Tex 14GT 16 FOOT DUMP
Standard Feature Available Options
Axles
2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Drop Axles
(Lowers Deck Height to 24" from Ground
)
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Tongue
10" I-Beam Neck
Coupler
Round Adjustable Pin 2-5/16” Gooseneck Coupler
Safety Chains
3/8" Grade 70 w/ Safety Latch Hook
(2 ea
)
Jack
Dual 12,000# Drop-Leg Jack
(Side Wind
)
Dual 2-Speed Landing Gear
Frame
8" I-Beam
(13#
)
Cross-Members
3" Channel on 16" Centers
Floor
10 Gauge Smooth Steel
Upgrade Floor to 7-Gauge Steel
Fenders
9" x 72" 14 Ga. Diamond Plate Double Broke
Ramps
Not Included
6.5’ Slide In Ramp Package
Stake Pockets
Stake Pockets Along Both Sides
(Quantity Varies by Length
)
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade
(ST235/80 R-16 LR-G
)
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Spare Tire
Not Included
Spare Tire & Wheel
(ST235/80 R-16 LR-E
)
Spare Tire Upgrade
(ST235/80 R-16 LR-G
)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4
) 1/2" D-Rings Inside Bed to Secure Equipment
Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger
Deck On Neck
Not Included
Removable Deck on the Neck- Bolt On
(8' W x 6' L
)
Gate
Rear Combo Gate
(Barn Doors & Spreader Gate
)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Gravity Down Movement
5 Watt Solar Charger
Wireless Remote
Ram
12-Ton 3- Stage Telescopic Cylinder
Sides
24" Tall
(10 Ga
) with formed Channel Supports
24" Expanded Metal Side Extensions
3' Solid Sheet Metal Sides
4' Solid Sheet Metal Sides
Stabilizers
Rear Stabilizer Stands
Steps
Convenient Side-Step to Access Top Rail
Storage
Lockable Pump and Battery Box mounted between front Jacks
Tarp
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail
3"x 2" Rectangular Tubing
Steps & Handles
Convenient Side-Step to Access Top Rail
FOR MORE INFO CALL SALES 1-800-897-9840
