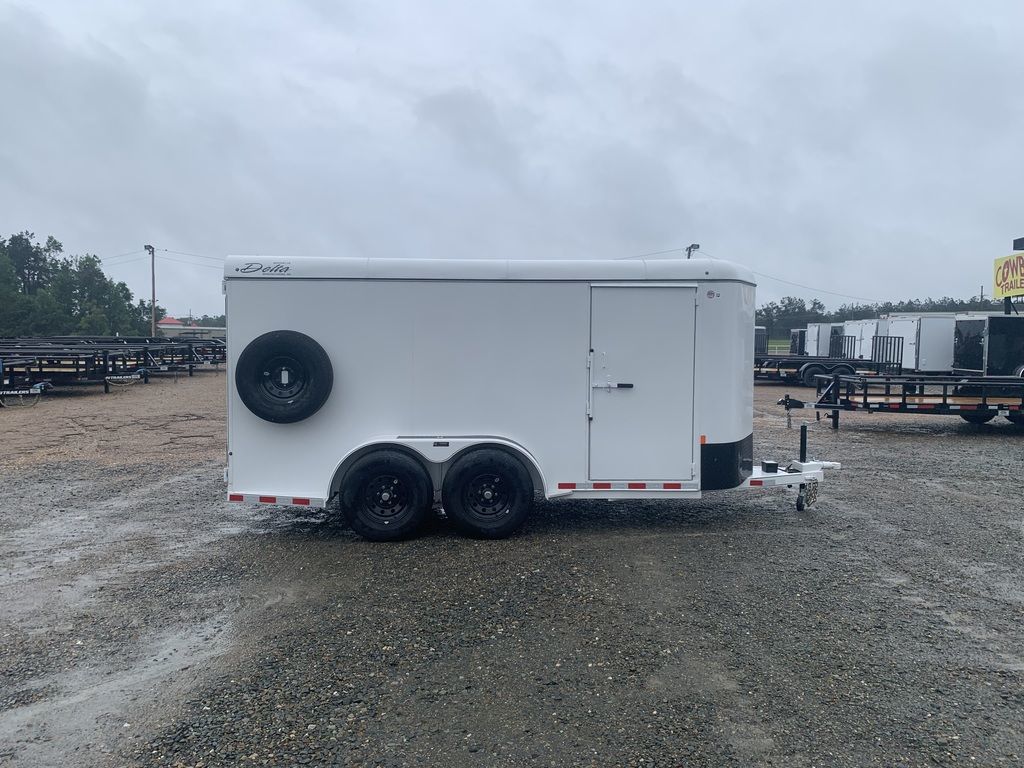

2026 Delta Trailers 6x16 Tandem Axle Cargo

Upgraded options:
5200lb axles
16" tires
spare tire
V-nose

2026 Delta Trailers 300 TB 16’

The 300 Series is an all steel cargo trailer available in various lengths and widths. It’s available in both bumper-pull and gooseneck models, and options include an RV style camper vent, split rear van doors, and full rear drop ramp.

Standard features on the 300 Series Cargo include aluminum trim, and diamondplate gravel guards on the front fenders and 3/4-inch pressure-treated plywood floor. Vinyl graphics on the sides add a decorative customized look.

The single-axle model has a solid rear door and tandem axle models have a double rear van door. Most models include full escape doors. The “Contractor-grade” 300 Series is durable enough to haul just about anything.

Features may include:

• G.V.W.R.: 7,000 lbs to 14,000 lbs

• Coupler: 2” Coupler, 2 5/16” on 18’ and 20’

• Axles: Tandem 3500 lbs, 5200 lbs & 7000 lbs

• Suspension: Eye-to-Eye Spring

• Brakes: Electric Brakes on All Axles

• Tire: 16” Radials (15” Radials on 14’ and Under)

• Wheel: 16”, 6-bolt (15” Wheels on 14’ and Under)

• Frame: 2 x 3 Angle

• Tongue: 3" Channel, Larger Channel on Longer Models

• Crossmembers: 2 x 2 Angle on 16” Centers

• Safety Chains: 5/16” Heavy Duty with Safety Latch Hooks

• Jack: Top Wind with Wheel

• Sides: 14 Gauge Smooth Skin

• Side Uprights: 1 x 2 Tubing on 20” Centers

• Floor: 3/4" Treated Plywood or 2x8 Treated Pine

• Roof: 18 Gauge Metal with Bows on 24” Centers

• Rear Door: Double Rear Van Doors

• Side Door: Full Size

• Exterior Lights: D.O.T. Stop, Tail, Turn and Clearance

• Interior Lights: 2 Dome Lights (1 Near Each Door)

• Electric Plug: 7-Way RV Style

• Wiring: 14 Gauge in Conduit with Junction Box

• Pre-Prep: 3-Step Acid Washed with Phosphorus Solution

• Prep: Joints Sealed with Polyurethane Sealant

• Primer: Rust Resistant Epoxy Primer

• Paint: Baked-on High Solid Urethane

• Pinstripes: Painted Pinstripes

• Box Width: 72” Approx. Standard, Wider Options Available

• Deck Height: Approx. 14”

• Gravel Guard: Aluminum Diamondplate

• Reflective Tape: Required D.O.T. Reflective Taping

• Safety: Emergency Breakaway Switch and Battery Backup
