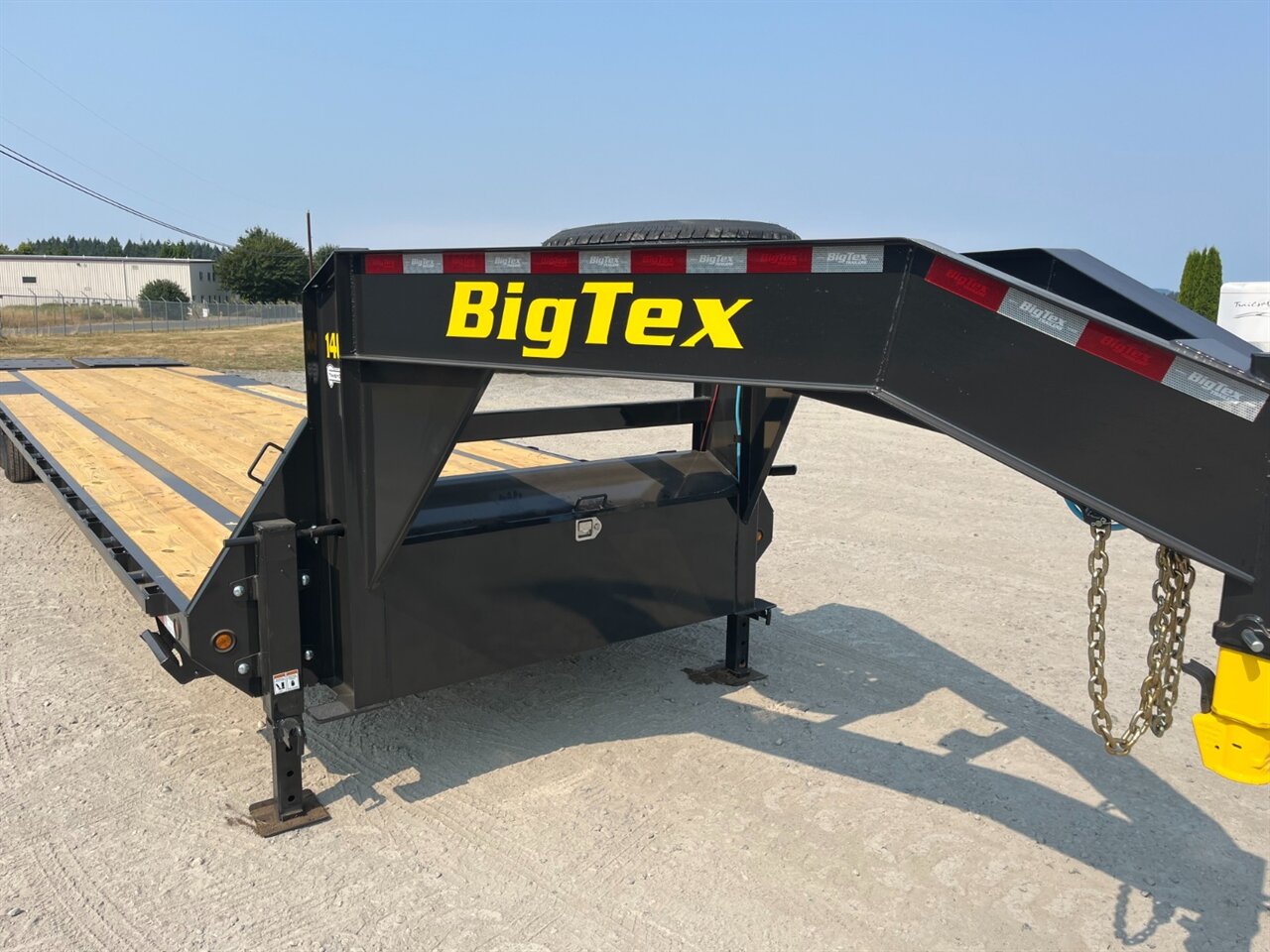

2027 Big Tex Trailers 14GN-40D5A 35+5 Flatbed Gooseneck 15.9K GVW

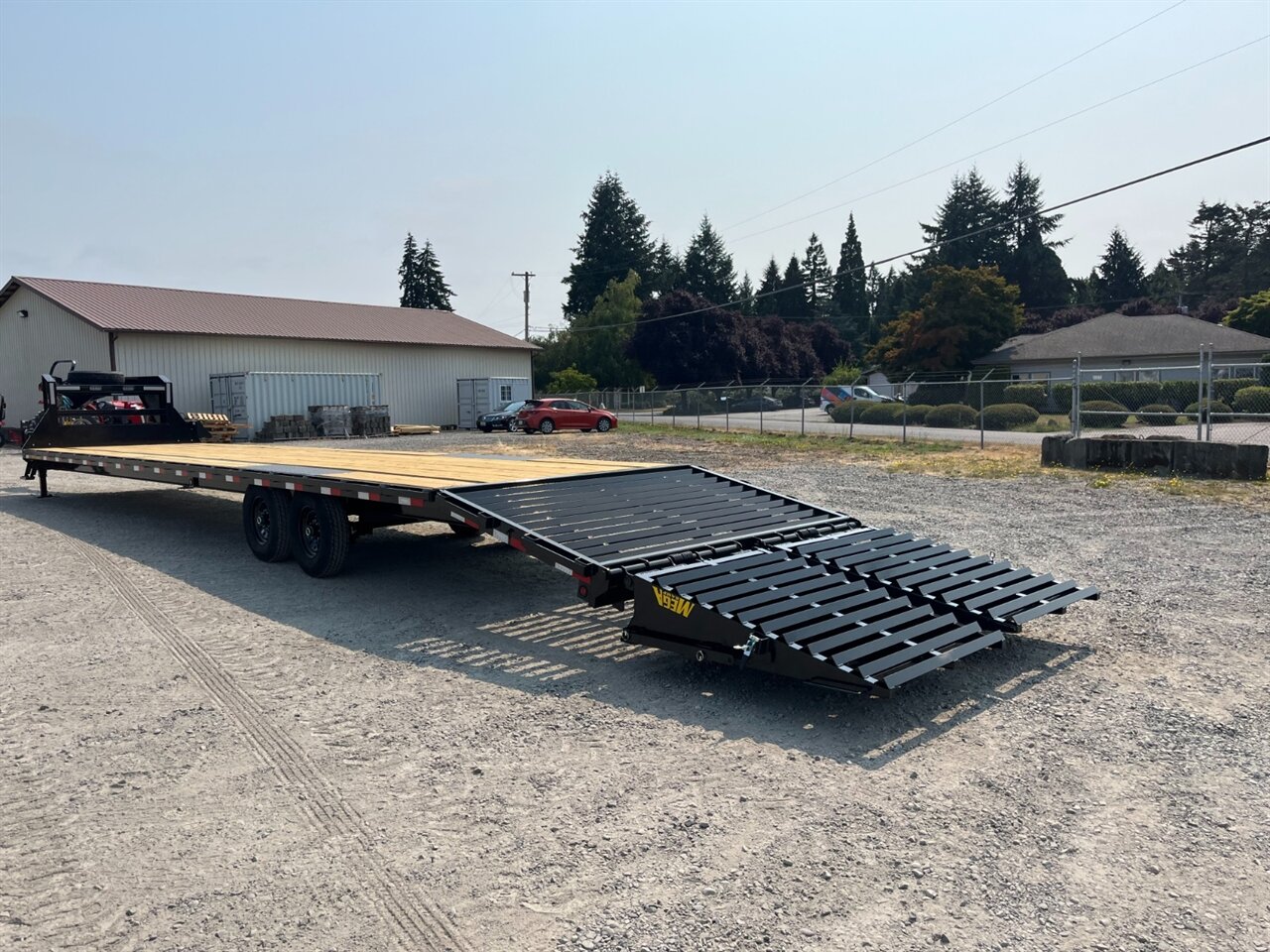

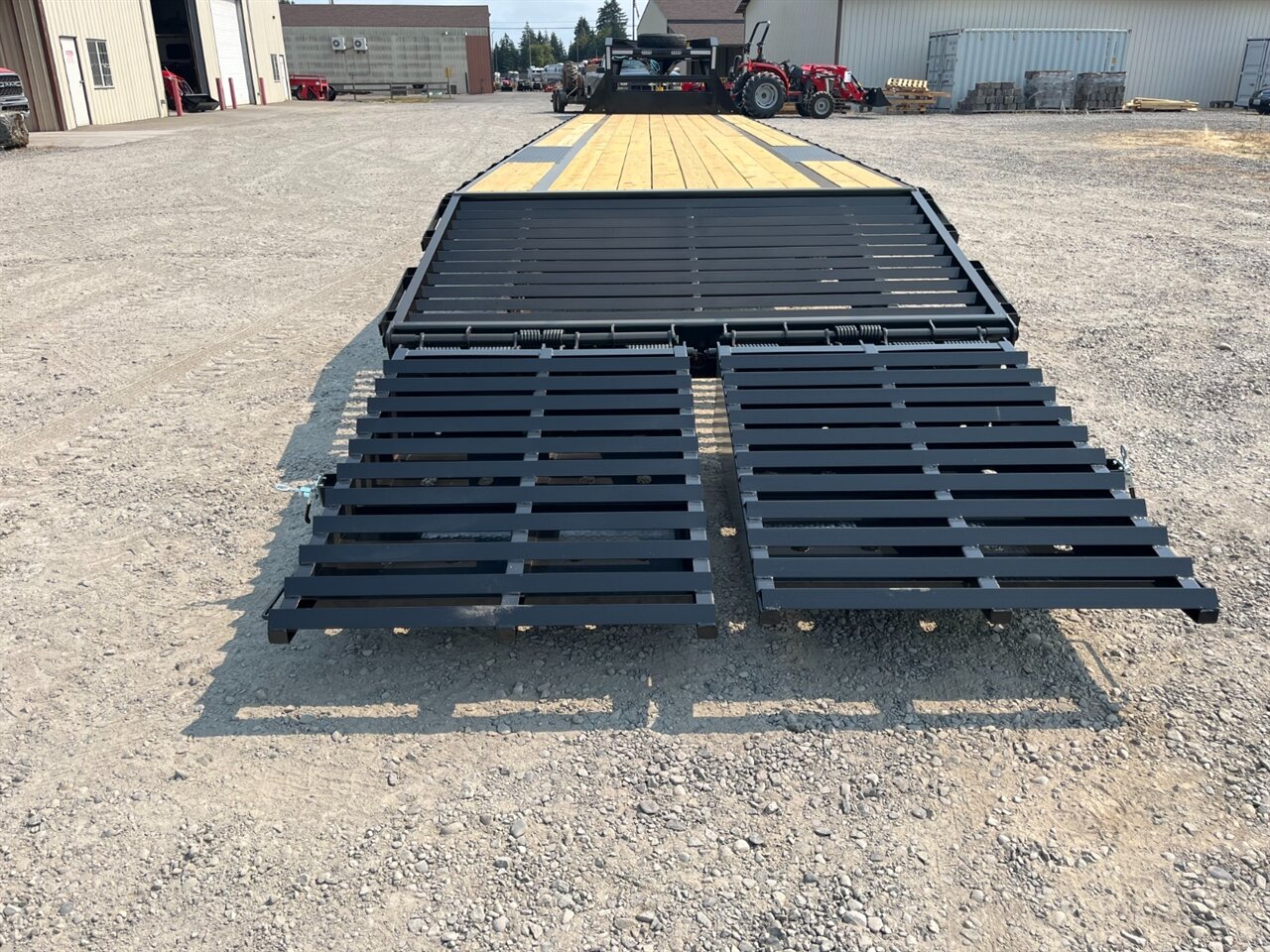

2027 Big Tex Trailers 14GN-40D5A 35+5 Flatbed Gooseneck — 15.9K GVW Heavy-Duty Hauling With 40 Feet of Deck Space The 2027 Big Tex Trailers 14GN-40D5A is a professional-grade flatbed gooseneck built for contractors, farmers, equipment operators, and serious haulers. With a 35' main deck plus a 5' dovetail, this trailer provides a full 40 feet of hauling space and a 102-inch deck width. With a 15,900-lb GVWR, tandem 7,000-lb axles, heavy-duty I-beam construction, and convenient loading ramps, the 14GN-40D5A is ready to handle equipment, machinery, vehicles, and materials. Key Specifications Year: 2027 Manufacturer: Big Tex Trailers Model: 14GN-40D5A Configuration: 35' + 5' Flatbed Gooseneck Overall Length: 40 ft. Deck Width: 102 in. GVWR: 15,900 lbs. Trailer Weight: 7,190 lbs. Carry Capacity: 8,710 lbs. Hitch: Gooseneck Axles: Tandem 7,000-lb axles Dovetail: 5' Cleated Dovetail Ramps: 5' Double-Hinged Spring-Assist Flip-Over Ramps Big Tex lists the 14GN-40D5A with a 7,190-lb empty weight and 8,710-lb cargo capacity, giving it a 15,900-lb GVWR. Built for Equipment Hauling The 14GN-40D5A features a heavy-duty 12" I-beam frame, treated pine flooring, heavy-duty 3/8" rub rails, stake pockets, chain spools, dual 12,000-lb drop-leg jacks, recessed LED lighting, and electric brakes on both axles. The 5' dovetail and flip-over ramps make loading and unloading equipment easier. The generous 35+5 configuration gives you plenty of room for tractors, skid steers, excavators, vehicles, attachments, and other large equipment. Its gooseneck design provides a stable towing platform while the 15.9K GVWR gives you an impressive 8,710 lbs. of available cargo capacity. Ready for Work 15,900-lb GVWR | 7,190-lb Trailer Weight | 8,710-lb Carry Capacity | 40' Overall Length | 102" Wide | 5' Dovetail Whether you're moving equipment to the jobsite, hauling machinery around the farm, or transporting vehicles and materials, the 2027 Big Tex 14GN-40D5A delivers the deck space, strength, and versatility needed to get the job done. Big deck. Heavy-duty construction. Serious hauling capability. Built to work.
