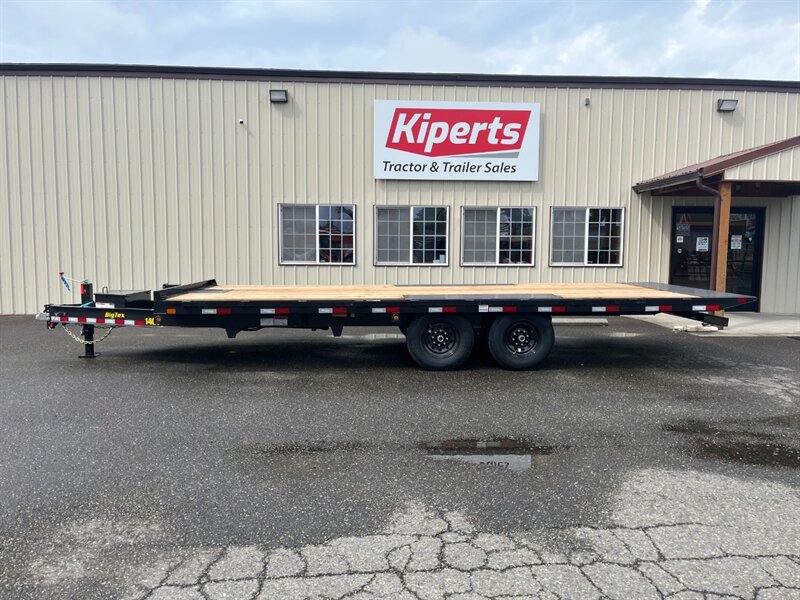

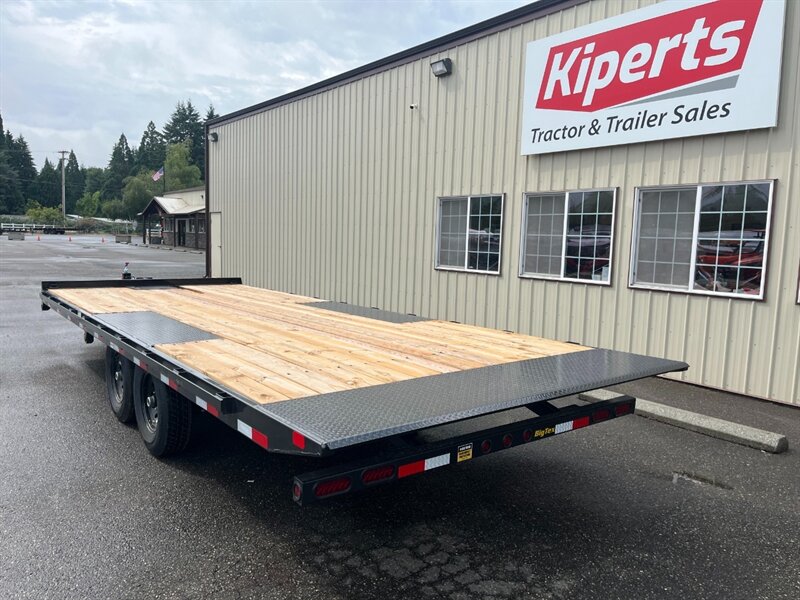

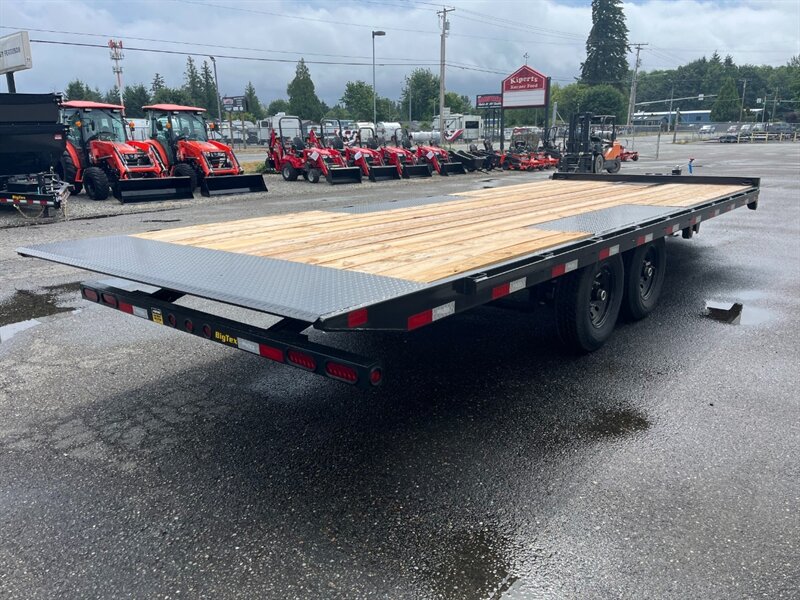

2027 Big Tex Trailers 14OT-24 8x24 14K Over/Axle Tilt Flatbed

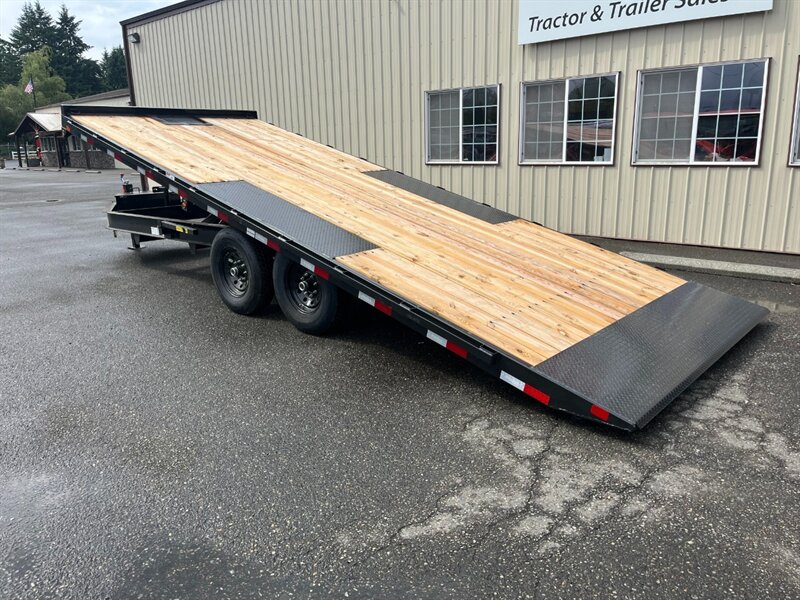

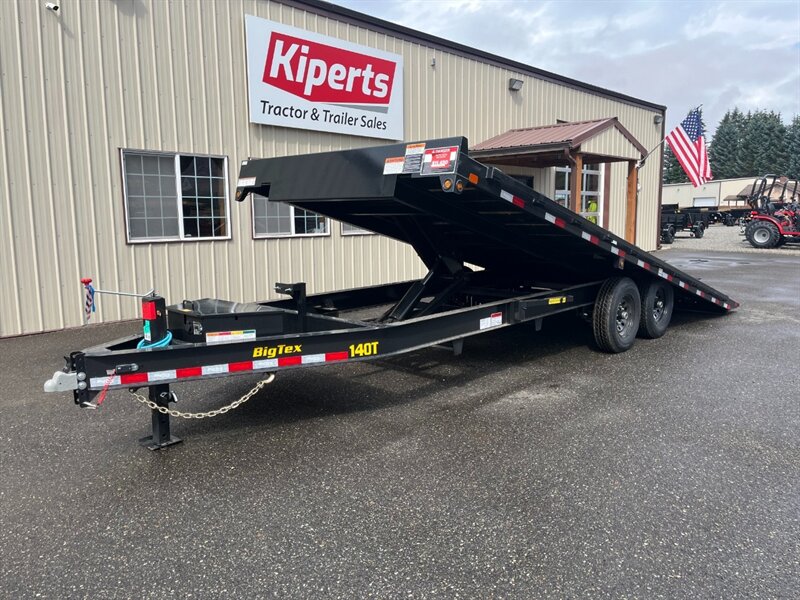

New 2027 Big Tex 14OT-24 8.5' x 24' Heavy Duty Over-the-Axle Tilt Trailer The 2027 Big Tex 14OT-24 is a heavy-duty over-the-axle tilt trailer designed for easy, ramp-free loading of equipment, vehicles, and machinery. With a full 102" wide x 24' long deck, hydraulic power tilt system, and heavy-duty I-beam construction, the 14OT is an excellent choice for contractors, farmers, equipment operators, landscapers, and commercial users. With a 14,000 lb GVWR, approximate 4,950 lb empty weight, and approximately 9,050 lbs of carrying capacity, the 14OT-24 provides plenty of payload along with the versatility of a full-width deck-over design. Full Hydraulic Tilt Deck The 14OT features a power up/power down hydraulic scissor lift system, allowing the entire deck to tilt for convenient loading and unloading without traditional equipment ramps. A 16-degree tilt angle combined with the rear diamond-plate knife edge provides a smooth transition from the ground onto the trailer. The collapsible rear bumper automatically moves out of the way when the deck is tilted for loading. A front-mounted winch plate comes standard, making it easy to add an electric winch for loading disabled vehicles, equipment, or other non-running machinery. Key Specifications Model: 2027 Big Tex 14OT-24 Bed Size: 102" Wide x 24' Long GVWR: 14,000 lbs Empty Weight: Approx. 4,950 lbs Carrying Capacity: Approx. 9,050 lbs Axles:
(2

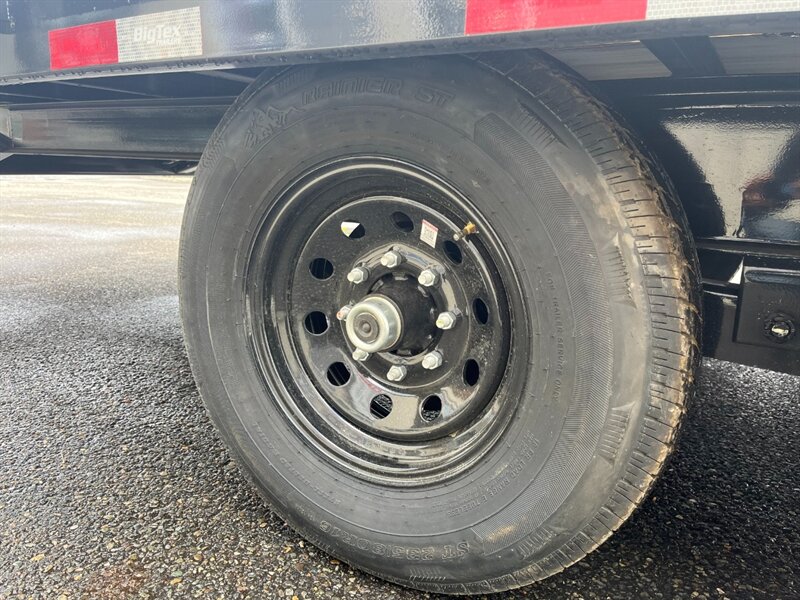

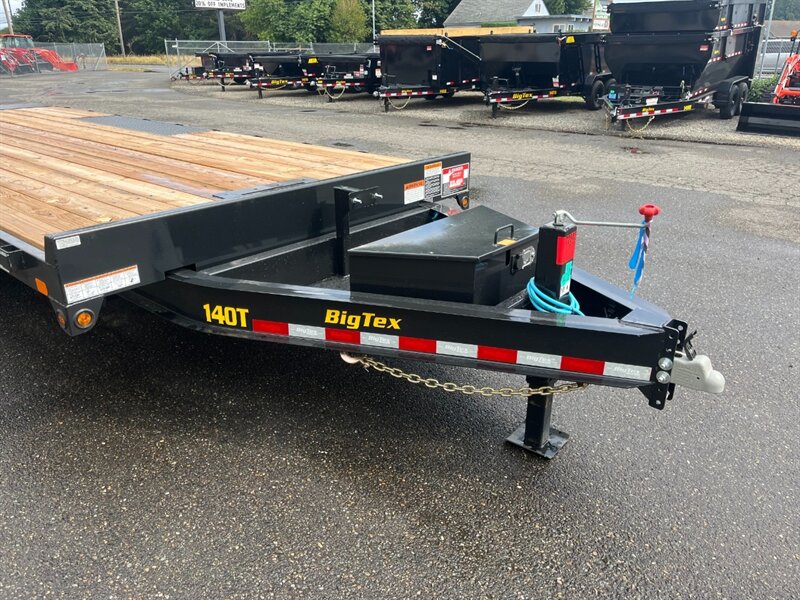

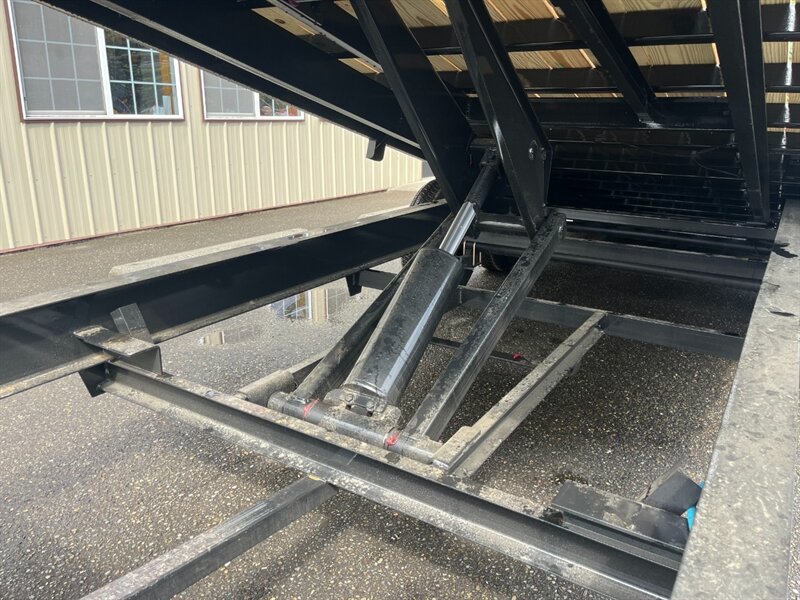

) 7,000 lb premium cambered axles Brakes: Forward self-adjusting electric brakes on both axles Suspension: Multi-leaf slipper spring with equalizer Main Frame: Heavy-duty 8" I-beam Floor: 2" treated pine Tilt System: Hydraulic scissor lift Hydraulics: Power up / power down Tilt Angle: Approx. 16 degrees Rear Loading Edge: Diamond-plate knife edge Rear Bumper: Collapsible rear bumper Winch Plate: Front-mounted winch plate – standard Rub Rail: Heavy-duty rub rail along both sides Tie Downs: Stake pockets/tie-down points along sides plus front D-rings Coupler: Adjustable 2-5/16" Demco EZ Latch Jack: Heavy-duty 12,000 lb drop-leg jack Tires: ST235/80R16 Load Range E radial tires Battery: 12V battery Charger: 110V onboard battery charger Storage: Front tongue storage area Lights: Sealed LED lighting Plug: 7-way RV Pull Type: Bumper Pull Full 102" Wide Deck One of the biggest advantages of the 14OT-24 is its full 102" deck width. Because the deck sits over the tires rather than between them, you get the entire 8.5' width for cargo and equipment. That makes the 14OT especially useful for hauling vehicles, tractors, skid steers, mini excavators, scissor lifts, construction equipment, farm equipment, pallets, and other wide loads. Ramp-Free Equipment Loading Instead of pulling out and positioning heavy ramps, the entire deck tilts to create the loading surface. The hydraulic scissor hoist provides powered operation, while the rear knife edge helps provide a smoother transition onto the deck. For equipment that can't be driven onto the trailer, the standard front winch plate makes adding a winch simple. With its 24' full-width deck, 9,050 lbs of carrying capacity, hydraulic tilt system, and heavy-duty 8" I-beam construction, the 2027 Big Tex 14OT-24 is a versatile equipment hauler built for demanding jobs. GVWR: 14,000 lbs Empty Weight: Approx. 4,950 lbs Carrying Capacity: Approx. 9,050 lbs Deck Size: 102" Wide x 24' Long Empty weight and carrying capacity are approximate and may vary depending on installed options.
