2027 Big Tex Trailers 14TL-20 16+4 7x20' Tilt Flatbed

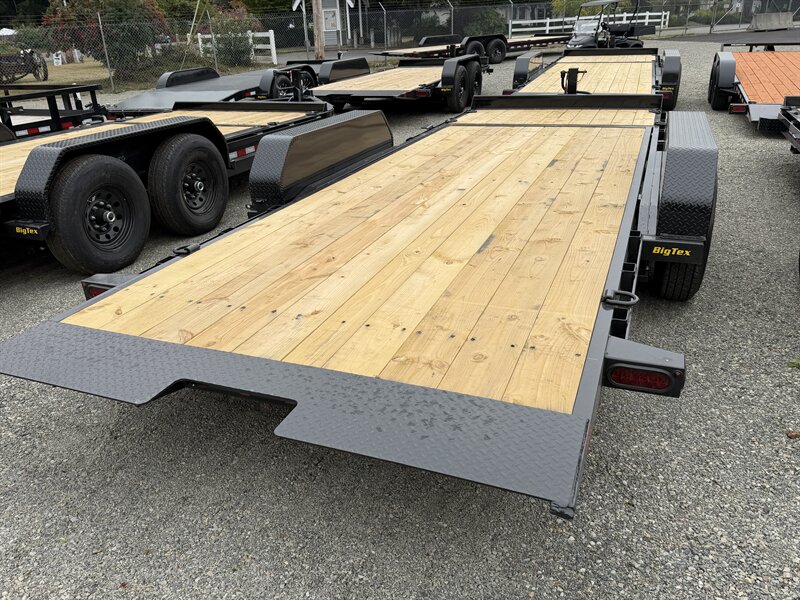

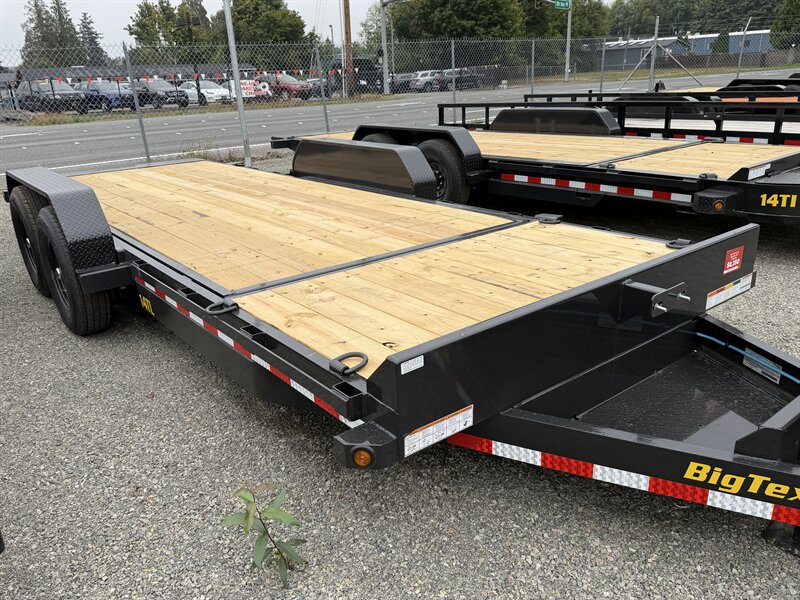

New 2027 Big Tex 14TL-20 16+4 Heavy Duty Tilt Flatbed Trailer The 2027 Big Tex 14TL-20 is a heavy-duty equipment trailer that combines the convenience of ramp-free tilt loading with the versatility of a stationary front deck. Featuring a 16' hydraulic-dampened tilt deck plus a 4' stationary front deck, this trailer is an excellent choice for hauling skid steers, mini excavators, compact tractors, scissor lifts, mowers, vehicles, and other equipment. With a 14,000 lb GVWR, approximate 3,460 lb empty weight, and an impressive 10,540 lb carrying capacity, the 14TL-20 delivers plenty of payload for contractors, landscapers, farmers, equipment operators, and property owners. 16' Tilt Deck + 4' Stationary Deck The 16' rear tilt deck eliminates the need for traditional equipment ramps. A hydraulic dampening system with valve control provides smooth, controlled deck movement, while Big Tex's single-side EZ Pedal locking mechanism makes operating the tilt deck quick and convenient. The 4' stationary front deck provides additional space for buckets, attachments, implements, pallets, tools, or other cargo while your equipment is loaded on the tilt portion of the trailer. With a low 12-degree tilt angle and diamond-plate rear knife edge, equipment can transition smoothly from the ground onto the trailer. Key Specifications Model: 2027 Big Tex 14TL-20 Bed Size: 83" Wide x 20' Long Deck Configuration: 16' Tilt + 4' Stationary GVWR: 14,000 lbs Empty Weight: Approx. 3,460 lbs Carrying Capacity: Approx. 10,540 lbs Axles:
(2
) 7,000 lb premium 4" drop axles Brakes: Forward self-adjusting electric brakes on both axles Suspension: Multi-leaf slipper spring with equalizer Tilt Deck: 16' hydraulic-dampened tilt deck Stationary Deck: 4' front deck Tilt Angle: 12 degrees Tilt Operation: Hydraulic dampening with valve control Deck Lock: Single-side EZ Pedal locking mechanism Rear Loading Edge: Diamond-plate knife edge Floor: Treated pine Tie Downs:
(6
) heavy-duty 5/8" D-rings Rub Rail: Full-length rub rail along both sides Coupler: Adjustable 2-5/16" coupler Tires: ST235/80R16 Load Range E radial tires Lights: LED Breakaway System: Complete breakaway system with charger Plug: 7-way RV Pull Type: Bumper Pull Easy Ramp-Free Loading The tilt-bed design makes loading and unloading equipment simple. Instead of pulling out and positioning heavy ramps, release the tilt deck, allow it to lower to the ground, and drive your equipment aboard. The hydraulic dampening system helps control deck movement, while the 12-degree loading angle makes the 14TL well suited for a wide variety of wheeled and tracked equipment. Versatile 16+4 Design The 4' stationary front deck is especially handy when hauling equipment with additional attachments. Load your skid steer or mini excavator on the tilt deck while using the stationary portion for buckets, attachments, implements, or other supplies. With approximately 10,540 lbs of carrying capacity, the 2027 Big Tex 14TL-20 is a versatile equipment trailer that's ready for construction, landscaping, farming, property maintenance, and more. GVWR: 14,000 lbs Empty Weight: Approx. 3,460 lbs Carrying Capacity: Approx. 10,540 lbs Deck: 16' Tilt + 4' Stationary = 20' Total Empty weight and carrying capacity are approximate and may vary depending on installed options.
