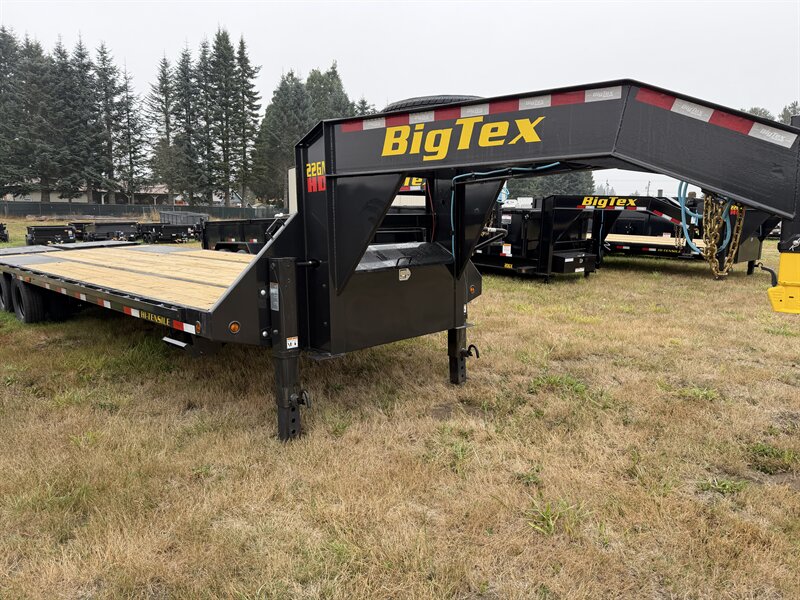

2027 Big Tex Trailers 22GN-30D5A 22K 25+5 Flatbed GN Trailer w/Mega Ramp

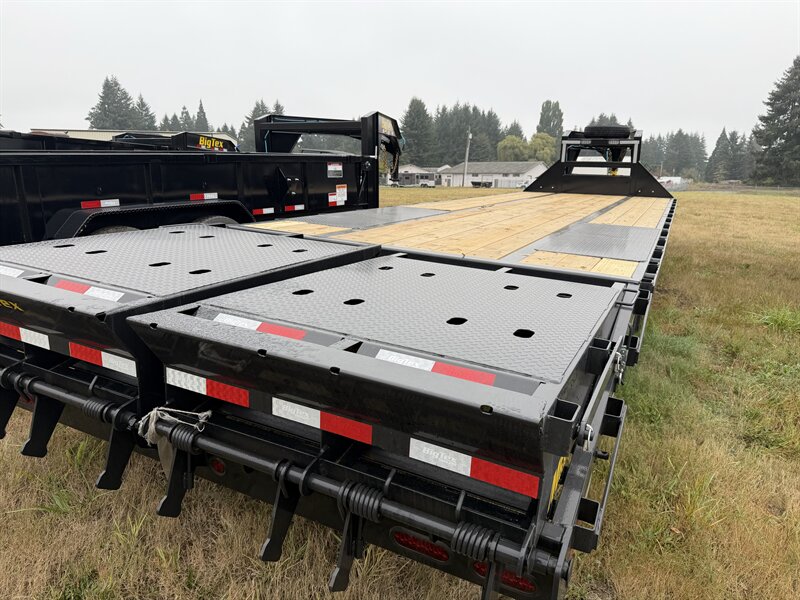

New 2027 Big Tex 22GN-30 25+5 Tandem Dual Flatbed Gooseneck w/Mega Ramps Built for serious hauling, the 2027 Big Tex 22GN 25+5 Tandem Dual Gooseneck delivers the strength, capacity, and durability needed for heavy equipment, tractors, construction machinery, and commercial hauling. With a 25' main deck plus 5' dovetail, this trailer gives you a full 30' of deck length and an impressive 16,440 lb. carrying capacity. The heavy-duty Mega Ramps provide a wide, stable loading surface that's ideal for equipment with wide tires or tracks. Dual 10,000 lb. axles, a heavy-duty adjustable suspension, and a rugged 12" I-beam frame make the 22GN ready to work. Specifications & Features: Deck: 25' + 5' dovetail – 30' overall deck length Deck Width: 102" GVWR: 23,900 lbs. Empty Weight: Approx. 7,460 lbs. Carrying Capacity: Approx. 16,440 lbs. Axles:
(2
) 10,000 lb. tandem dual axles Oil-bath hubs Forward self-adjusting electric brakes on both axles Heavy-duty 30,000 lb. adjustable suspension 5' Mega Ramps for easier equipment loading 2-5/16" Demco EZ Latch adjustable gooseneck coupler Dual 2-speed landing gear Heavy-duty 12" I-beam frame and neck Treated wood deck Heavy-duty rub rail with tie-down pockets and chain spools LED lighting Dual wheels for added stability under heavy loads Spare tire mount Low-profile pierced-frame design Whether you're hauling a tractor, skid steer, excavator, construction equipment, or other heavy loads, the Big Tex 22GN is designed to provide the capacity and durability professional haulers demand. Empty Weight: Approx. 7,460 lbs. GVWR: 23,900 lbs. Approx. Carrying Capacity: 16,440 lbs.
We also service all brands of trailers & tractors.
Trailer information
