2027 Big Tex Trailers 14TL-22 80" X 22' 16+6 FLATBED TILT TRAILER

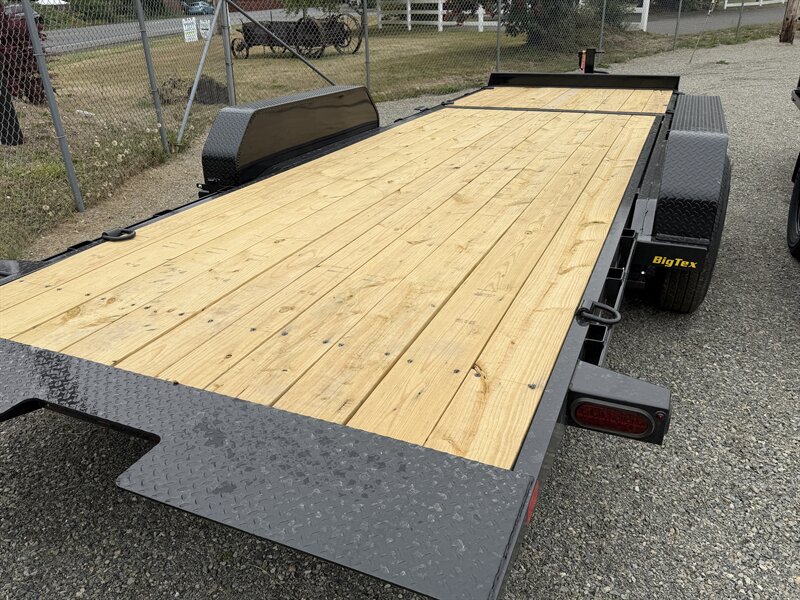

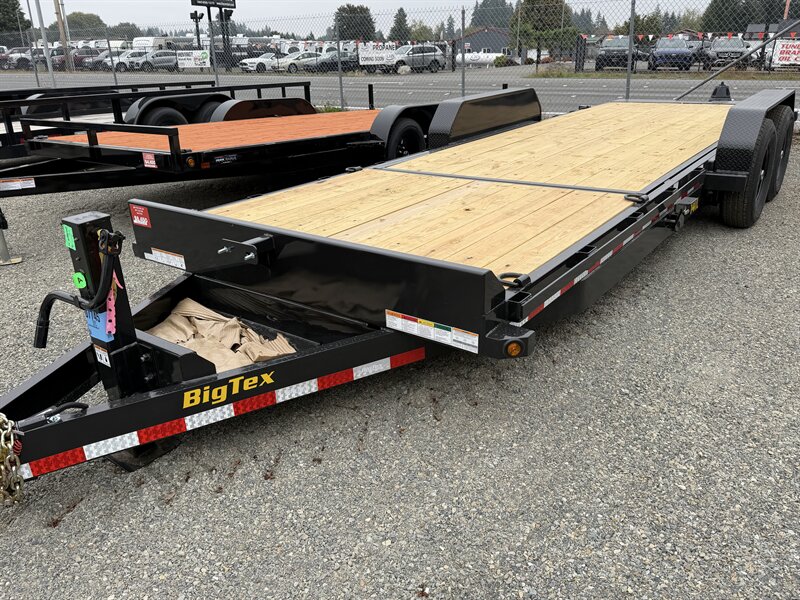

New 2027 Big Tex 14TL-22 16+6 Heavy Duty Tilt Flatbed Trailer The 2027 Big Tex 14TL-22 combines heavy-duty equipment-hauling capability with the convenience of a hydraulic-dampened tilt deck. Featuring a 16' tilt deck plus 6' stationary front deck, this 22' trailer eliminates the hassle of equipment ramps while providing plenty of usable deck space for machinery, attachments, and other cargo. With a 14,000 lb GVWR, approximate 3,660 lb empty weight, and an impressive 10,340 lb carrying capacity, the 14TL-22 is an excellent choice for contractors, landscapers, farmers, equipment operators, and property owners. 16' Tilt Deck + 6' Stationary Deck The rear 16' tilt deck features a hydraulic dampening system with valve control for smooth, controlled loading and unloading. Big Tex's single-side EZ Pedal locking mechanism makes operating the tilt deck quick and convenient. The 6' stationary front deck provides additional room for attachments, buckets, implements, pallets, or other cargo while equipment is positioned on the tilt portion of the trailer. A 12-degree tilt angle and 1/4" diamond-plate rear knife edge provide a smooth transition from the ground onto the deck, making this trailer especially convenient for loading skid steers, mini excavators, compact tractors, scissor lifts, and other equipment. Key Specifications Model: 2027 Big Tex 14TL-22 Bed Size: 83" Wide x 22' Long Deck Configuration: 16' Tilt + 6' Stationary GVWR: 14,000 lbs Empty Weight: Approx. 3,660 lbs Carrying Capacity: Approx. 10,340 lbs Axles:
(2
) 7,000 lb premium drop axles Brakes: Forward self-adjusting electric brakes on both axles Tires: ST235/80R16 Load Range E radial tires Tilt Deck: 16' hydraulic-dampened tilt deck Stationary Deck: 6' front deck Tilt Angle: 12 degrees Tilt Operation: Hydraulic dampening with valve control Deck Lock: Single-side EZ Pedal locking mechanism Rear Loading Edge: 1/4" diamond-plate knife edge Floor: Treated pine Tie Downs:
(6
) heavy-duty 5/8" D-rings Rub Rail: Full-length rub rail along both sides Coupler: Adjustable 2-5/16" Lights: LED Wiring: Sealed modular cold-weather wiring harness Plug: 7-way RV Pull Type: Bumper Pull Easy Ramp-Free Equipment Loading The 14TL-22 is designed to make loading equipment faster and easier. Instead of pulling out and positioning heavy ramps, simply release the tilt deck, allow it to lower to the ground, and drive your equipment aboard. The hydraulic dampening system controls the movement of the deck for a smoother loading experience, while the 12-degree loading angle works well with a wide variety of wheeled and tracked equipment. Versatile 16+6 Deck Design Unlike a full-tilt trailer, the 16+6 split-deck configuration gives you a stationary section at the front of the trailer. This is especially useful when hauling a machine along with buckets, attachments, implements, pallets, or other supplies that you don't want moving with the tilt deck. With approximately 10,340 lbs of carrying capacity, the 2027 Big Tex 14TL-22 is a great choice for hauling skid steers, mini excavators, compact tractors, scissor lifts, mowers, vehicles, and other equipment. GVWR: 14,000 lbs Empty Weight: Approx. 3,660 lbs Carrying Capacity: Approx. 10,340 lbs Deck: 16' Tilt + 6' Stationary = 22' Total Empty weight and carrying capacity are approximate and may vary depending on installed options.
