2027 Big Tex Trailers 22GN-25D5A 20+5 Gooseneck w/Mega Ramps 23.9K GVWR

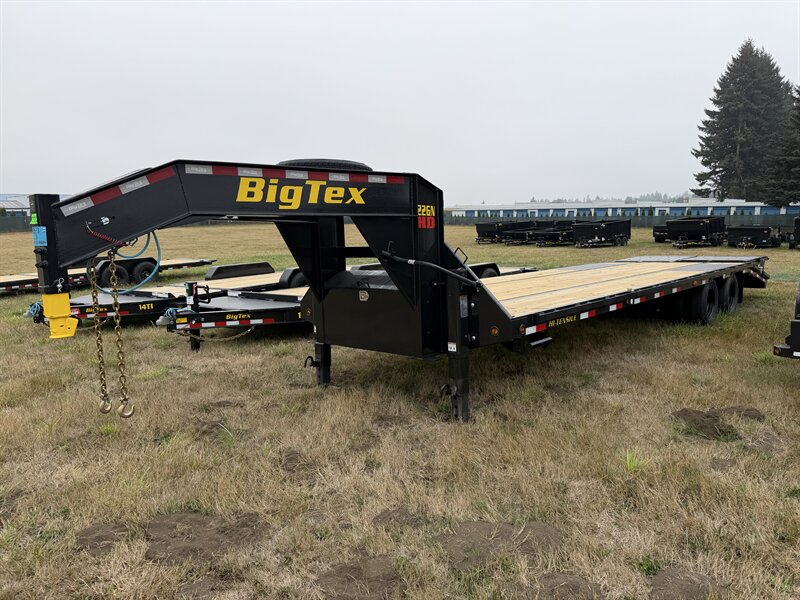

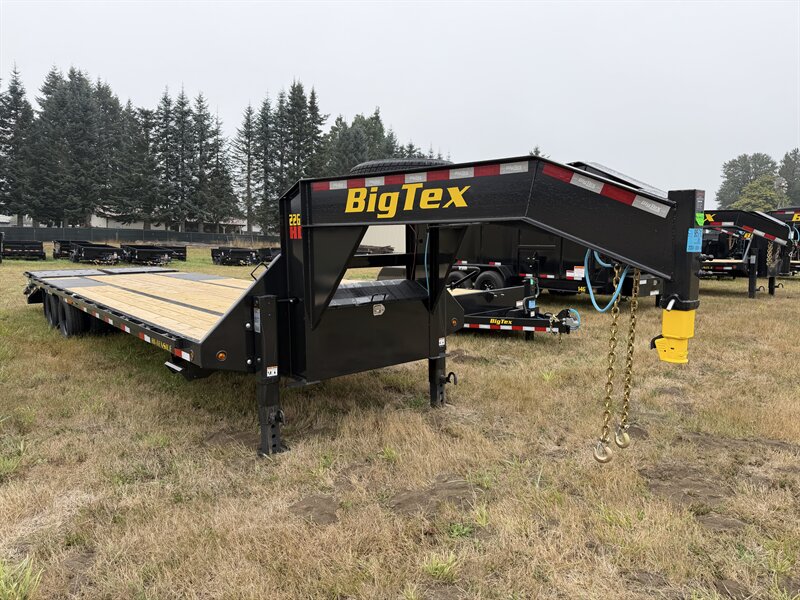

New 2027 Big Tex 22GN-25D5A 20+5 Tandem Dual Gooseneck Flatbed w/Mega Ramps Built for serious hauling, the 2027 Big Tex 22GN-25D5A is a heavy-duty tandem dual-wheel gooseneck trailer designed for transporting tractors, skid steers, excavators, construction equipment, vehicles, building materials, and other heavy loads. This trailer features a 20' flat deck plus 5' cleated dovetail, providing 25' of total bed length and a full 102"
(8.5'
) deck width. With a 23,900 lb GVWR, approximate 6,690 lb empty weight, and an impressive 17,210 lb carrying capacity, the 22GN delivers the strength and payload needed for demanding commercial, agricultural, and equipment-hauling applications. This unit is equipped with Big Tex Mega Ramps, providing a wide, stable loading surface for getting heavy equipment on and off the trailer. Key Specifications Model: 2027 Big Tex 22GN-25D5A Deck: 20' Flat Deck + 5' Dovetail Total Bed Length: 25' Bed Width: 102" / 8.5' GVWR: 23,900 lbs Empty Weight: Approx. 6,690 lbs Carrying Capacity: Approx. 17,210 lbs Axles:
(2

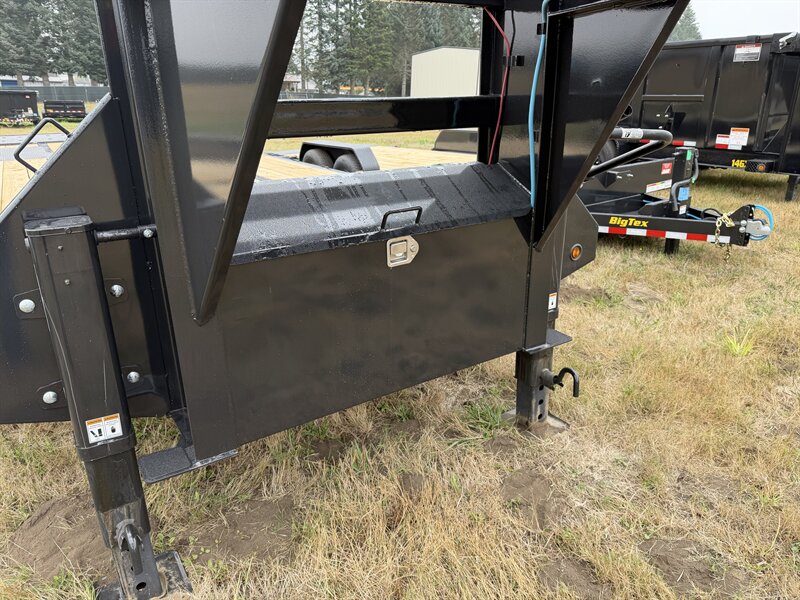

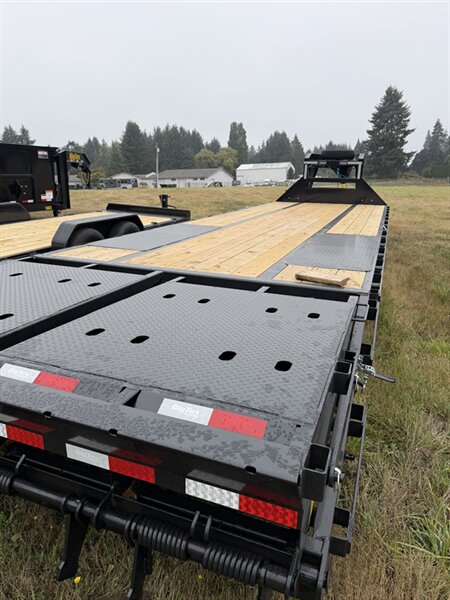

) 10,000 lb tandem dual-wheel axles Axle Lubrication: Oil bath with Valcrum caps Brakes: Forward self-adjusting electric brakes on both axles Suspension: Heavy-duty 30,000 lb adjustable suspension Main Frame: Heavy-duty 12" I-beam Outer Frame: 6" channel Floor: Treated pine Dovetail: 5' cleated dovetail Ramps: Mega Ramps Coupler: 2-5/16" Demco EZ Latch gooseneck coupler Landing Gear: Dual 2-speed landing gear – 50,000 lb capacity Rub Rail: Heavy-duty rub rail along both sides Stake Pockets: Along both sides Chain Spools: Integrated between stake pockets Storage: Large lockable front storage box with integrated chain holder Steps: Retractable side steps Work Lights: Integrated deck work light package Lights: Flush-mounted LED lighting Wiring: Sealed modular cold-weather wiring harness Spare Tire & Mount: Included Tires: ST235/80R16 Load Range E dual radial tires Plug: 7-way Pull Type: Gooseneck Mega Ramps for Easier Equipment Loading The Mega Ramp package makes this 22GN an excellent choice for customers regularly hauling heavy equipment. The wide loading surface provides greater flexibility when loading skid steers, mini excavators, tractors, backhoes, vehicles, and other machinery. Combined with the 5' cleated dovetail, the Mega Ramps provide a smooth transition from the ground onto the trailer deck while giving operators a larger target when loading equipment. Heavy-Duty Tandem Dual Construction The 22GN is built around a heavy-duty 12" I-beam frame and tandem 10,000 lb dual-wheel axles with oil-bath lubrication, forward self-adjusting brakes, and heavy-duty adjustable suspension. The full 102" wide deck, rub rail, stake pockets, and chain spools provide plenty of options for positioning and securing loads, while the large front toolbox provides
